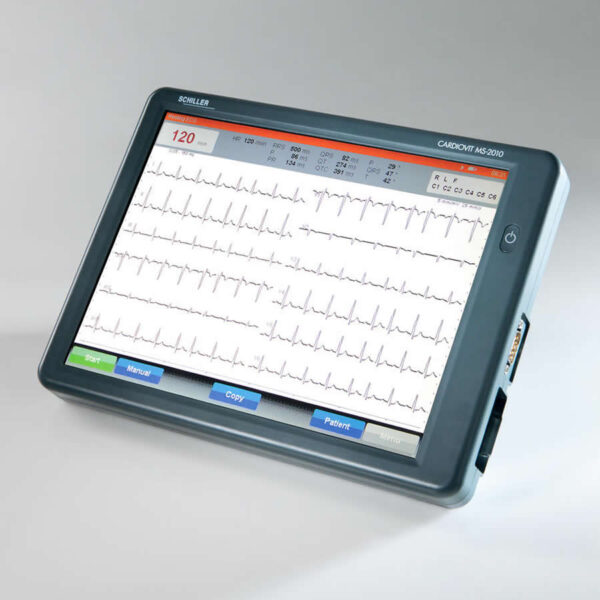

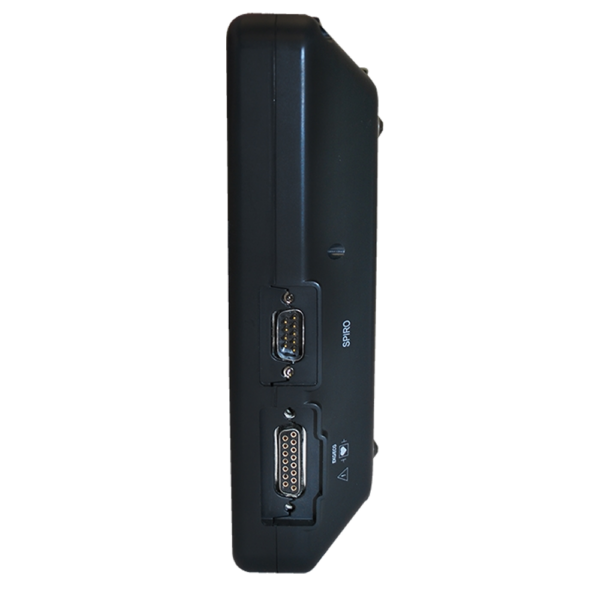

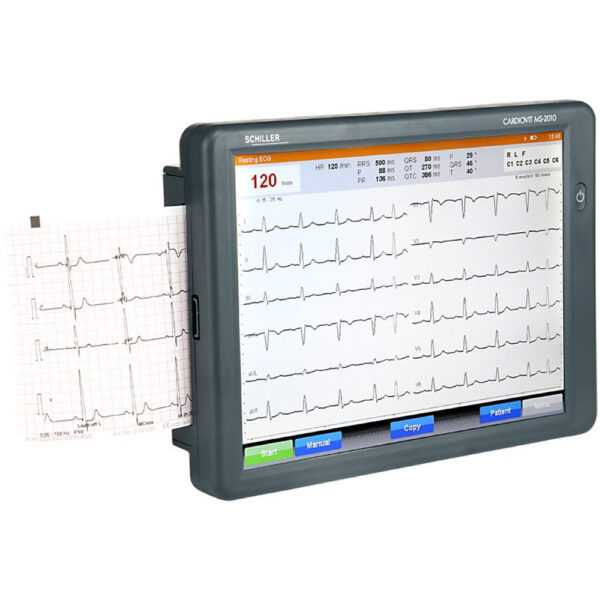

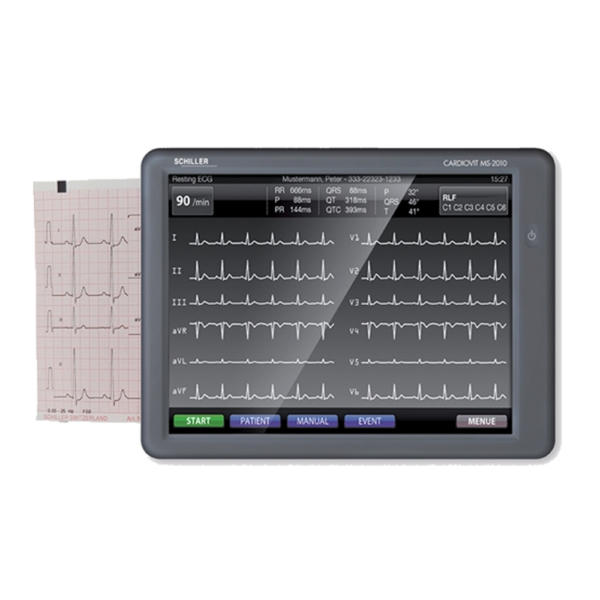

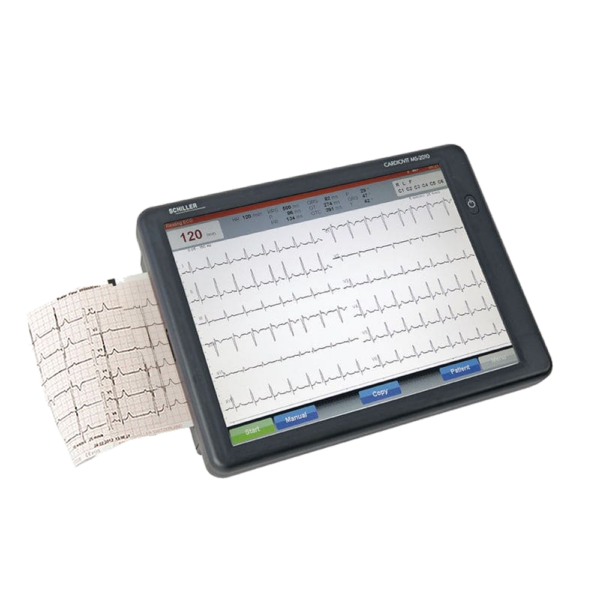

Cardiovit MS-2010 Touch Screen ECG Machine
Features and Benefits
- Meets newest FAA standards for EKG report submission! (FAA Class I Physicals)
- Instant start-up provides immediate availability.
- ECG processed, interpreted and printed in less than 3 seconds after acquisition.
- Auto set the MS-2010 time with your hospital time master to obtain accurate documentation of your patient’s clinical history.
- Enter patient data quickly and accurately as you choose: type on touch screen keyboard or scan the bar code.
- You can also download patient data and orders from a worklist via SEMA or HIS.
- Get complete clinical information with the SCHILLER Interpretation software with thrombolysis software or with advanced ECG tools such as SAECG or HRV.
- Capture and store 5 minutes of uninterrupted 12-lead data to document intermittent arrhythmias.
- Storage of up to 350 ECGs.
- Full disclosure storage of up to 5 minutes for easy acquisition of clean and stable ECG traces.
- MS-2010 can be configured to automatically print, save, transfer, and retrieve a previous ECG – at the touch of a button.
- 10.4” color LCD touch screen with LED back light
- High sampling rate: 4000 Hz
- Thermal printer
- One touch workflow
- Simultaneous 12 lead ECG acquisition
2,500.00$
The Schiller MS-2010 contains the latest achievements in cardiograph – uniting precision performance and sophisticated ergonomics. The MS-2010 is designed for large volumes of work – in hospitals where the ECG volume is high and speed and quality are paramount. Simply touch the large (10.4 in) high-resolution color display and you can start recording, selecting and printing the high-quality ECGs faster than you can imagine.
Since MS-2010 exports ECGs in XML, PDF and DICOM format, you can transmit recordings to any system that supports this industry standard. From accurate and complete data entries to comprehensive data fields that prompt users to collect required information, every detail of MS-2010 is designed to streamline ECG testing. And when you’re responsible for hundreds of ECGs across miles of hospital terrain every day, attention to detail makes all the difference.
FEATURES:
- Display: 10.4″ full color touch
- Network: One of the most advanced networking support found in any electrocardiograph
- Speed: Instant-on and ECG printout in less than 3 seconds
- DICOM: First high-end electrocardiograph to support DICOM standard
- Simultaneous 12 lead ECG acquisition
- One touch workflow
- Thermal printer
- High sampling rate: 4000 Hz
- 10.4” color LCD touch screen with LED back light
Materials Included
- MS-2010
- 10 Lead Patient Cable
- 10 Snap Clip Electrode Adapters
- 500 Disposable Electrodes
- One pack of paper
- Power Cable
- Operating Manual
Designed as a Lightweight , intuitive user interface, easy to-use with touch screen keyboard that provides ECG measurement software
with accurate measurements of recorded cardiac signals.
Ideal for medical practices that require speed and quality, and where the ECG level is high, this ECG system features 12 channels and is appointed with a 10.4″ high resolution touch display.
This color interface lets you record, select and print from the best ECG’s. This ECG system provides optimal speed and efficiency.
| Weight | 1.5 kg |
|---|---|
| Dimensions | 25.8 × 19.3 × 5.0 cm |
