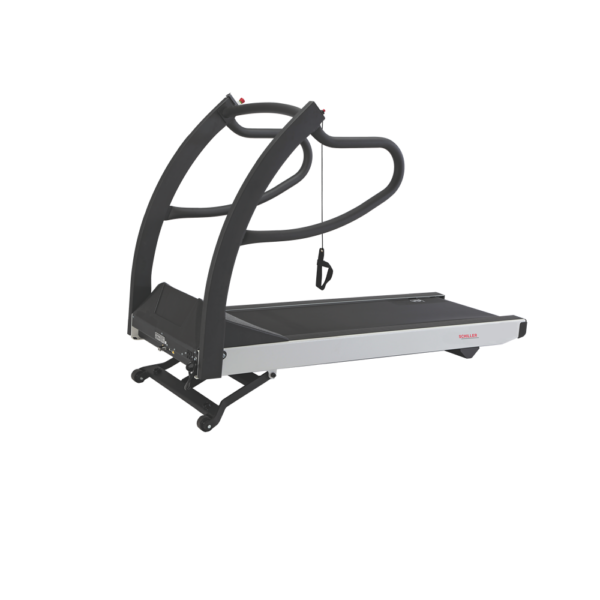

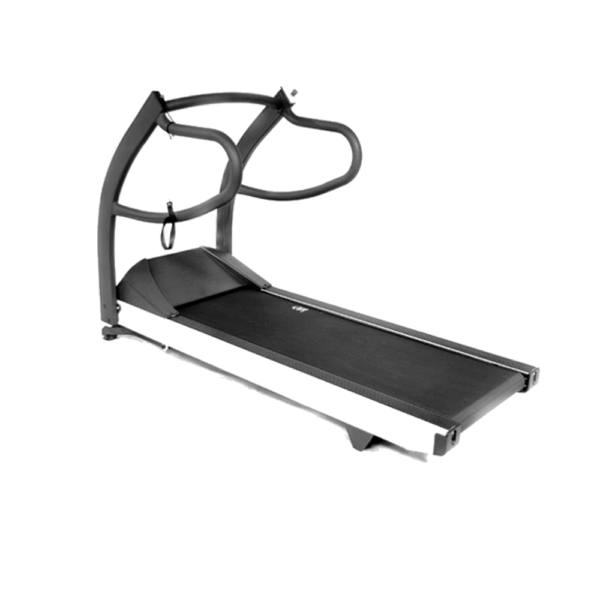

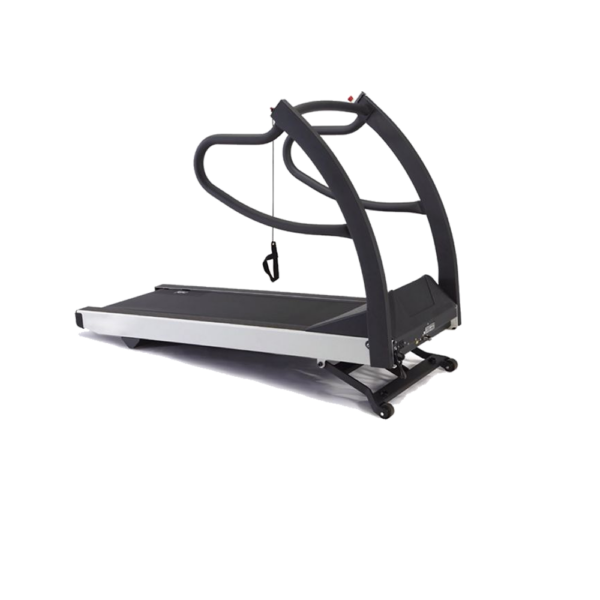

The Schiller TMX-428 Treadmill includes two built-in accessory holders, 5 pre-programmed medical protocols, 5 pre-programmed fitness workouts, 5 user programmable workouts, dual stop switches, and a safety tether.

Warranty: 1 Year.

The TMX-428 is a self-calibrating treadmill used for the testing of cardiac and pulmonary conditions. It is an incredibly quiet, yet powerfully operating machine. It has a four horse power brushless motor and a smooth linear actuator which controls the treadmill’s elevation.

The TMX-428 uses a 22 inch running belt, one of the widest in the industry, which is mounted on shock absorbing isolators to reduce impact for a comfortable patient experience. The low-profile deck provides easy access for sensitive and senior patients

This heavy-duty, medical treadmill is specifically designed to be interfaced and controlled by Schiller Stress Test and a wide variety of Cardiac and Pulmonary Stress Testing Systems.
The TMX428 is distinguished by its smooth, quiet and reliable, while centering the design on the absolute safety and comfort of the patient. The treadmill is self-calibrating, virtually
maintenance-free and the safety features include a low profile deck, .1MPH minimum operating speed, incredibly smooth belt operation and multiple emergency stop switches.

We offer the Schiller TMX428CP series treadmill, a cardiac and pulmonary stress testing system. It features a smooth-moving belt and low-profile deck easing access for sensitive and senior patients. It comes with belt alignment, helping save time and cost.
CardioSoft® compatibility
The stress testing treadmill offers compatibility with the CardioSoft ECG and PBI 12-lead ECG.
Independent operability
Controller options enable you to use the treadmill for stress testing independently from a medical device.
Self-calibration
The treadmill offers self-calibrating speed and elevation.

  • User capacity: 227 kg. / 500 lbs.
  • Frame: Heavy-gauge steel epoxy powder coat in jet-black rail with white finish
  • Safety side rails: Standard
  • Drive system Heavy-duty 4 HP (6 HP peak) drive
  • Power supply 208–240 V, 50–60 Hz, dedicated 15A service
  • Speed range 220 V: 0.1–15 MPH
  • Self-calibrating
  • Elevation range 0–25% self-calibrating
  • Running surface 22″ x 63″ cushioned, lubricated, low profile (7″ from floor)
  • Self-aligning running belt

Schiller TMX-428 Treadmill Features

  • Smooth, quiet, zero-start, 4HP (6HP peak) hi-torque drive.
  • Low-to-the ground, cushioned deck for patient comfort and safety.
  • Safety handrails.
  • Belt alignment system eliminates off-center running belts.
  • Exceptionally accurate, self-calibrating speed and elevation.
  • Prominent emergency stop button and patient safety tether.

Schiller TMX-428 Treadmill Specifications

  • Running Speed: 0.1 to 12 MPH.
  • Step-Up Height: 7.5″ (19 cm) from floor.
  • Weight Capacity: 500 lb (227 kg).
  • Braking on Patient Exit: 45 second duration upon stop.
  • Drive Motor: 4.0 HP PWM DC brushless servo delivers 6.0 peak HP.
  • Elevation Range: 0 – 25% self-calibrating.
  • Floor Space Requirement: 33″ x 78.5″ (84 cm x 200 cm).
  • Running Desk Surface: 22″ x 63″ (56 cm x 160 cm).
  • Frame: Heavy-gauge steel epoxy powder coat in jet-black rail with white finish.
  • Safety Siderails: Standard.
  • Drive System: Heavy-duty 4 HP (6 HP peak) drive.
Weight 217.724 kg
Dimensions 213.36 × 91.44 cm
