Multi-Parameter Patient Monitor

The Schiller Tranquility II Multi-Parameter Patient Monitor is the Perfect System to Monitor Patients. The Patient Monitoring System can Monitor ECG, SpO2, NIBP, HR, Temperature and Resp. to provide a Full Picture on the Patient’s Health. The Display is built with Physician’s Convenience in mind with as 12.1” Color Touch Screen Display.

Efficiency-

The Touch Screen has an Easy User Interface to Save Time where Efficiency is needed. The Compact Design is Convenient for Mobile Monitoring. This allows the Tranquility II to be used for Mobile or Stationary Monitoring. This makes the Tranquility II a go to system appropriate for use in Emergency Room Settings, Clinics, or Practices.

Software-

The Patient Monitoring System has many Softwares to help provide a clear image of Patient Health and Treatment Options. The Tranquility II has S-T Segment and 72 hours Trend Data Analysis to help provide a Full Picture. It also provides Drug Dose Calculation to help Start Treatments. The System has Multi-Lead ECG Monitoring and Displays a NIBP list along with OxyCRG Dynamic View Display. The Tranquility II Displays 4, 6, and 8 Waveforms with Clear, Large Font Display.

The Patient Monitoring System has Multi-Lingual Settings so it can be used in Multi-Lingual Areas. It is Networkable with Central Monitoring System via a Wireless or Wired Network.

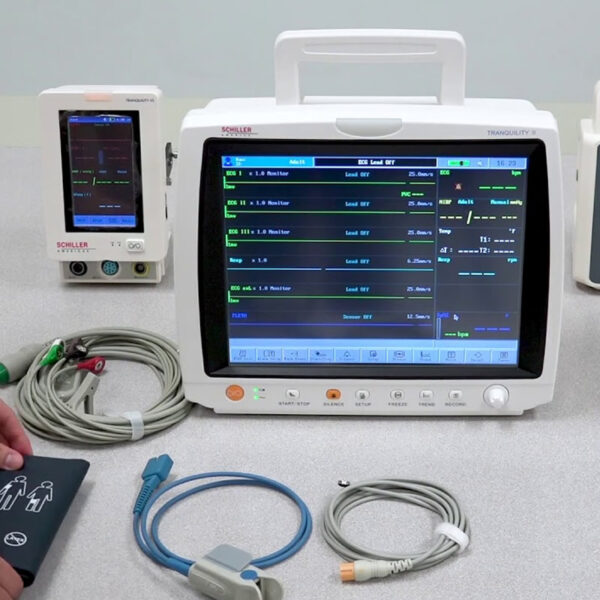

What’s in the Box
  • One (1) Schiller Tranquility II Multi-Parameter Patient Monitor
  • Two (2) Year Warranty for Monitors.
  • Sixty (60) Day Warranty for Accessories & Sensors.

Accessories Included:

  • ECG Cable (5 Lead)
  • BP Cuff (Adult)
  • BP Cuff Hose
  • Analog Adult Oximetry Sensor
  • Analog SpO2 Extension Cable
  • Skin Surface Temperature Probe
  • Power Cord (110 OR 220)
  • Operators Manual CD

Specifications

Blood pressure information
Systolic Range 40-250 (mmHg)
Diastolic Range 15-200 (mmHg)
Accuracy Maximum Mean error: ±5mmHg Maximum Standard deviation: 8mmHg
BP Determination Time AVE<40s
Thermometry Information
Measurement Range 32-122°F
Measurement Accuracy Without sensor
SpO2 Information
Measurement Range 0-100%
Measurement Accuracy ±2% 70-100%, non-motion ±3% 70-100%, motion
Display Range 30-250 bpm
SpO2 Type Anti-motion SpO2
Data management
Wireless connection? Wired and Wireless
Power
Power Type External AC power or internal battery
Battery life 1 Hour
Environmental
Safe Operating Temperature 5-40°C
Humidity 30-75%
Warranty
2 Years for Display, 60 Days for Accessories
Pulse Rate Information
Range 30-250 (bpm)
Accuracy Maximum Mean error: ±5mmHg
Maximum Standard deviation: 8mmHg
Application
Patient Populations Neonatal, pediatric and adult patients
Options Included
ECG Yes
Device Alarms Yes
Weight 5 kg
Dimensions 55.5 × 33.5 × 23.5 cm
